Early Detection Saves Dollars
The Selective Catalytic Reduction (SCR) system is a silent worker, but when it fails, it does so loudly and expensively. The DEF injector is the “heart” of this system, responsible for the precise delivery of urea into the exhaust. Because it is a mechanical part working in extreme heat, it is prone to wear, clogging, and electrical failure.
Recognizing the symptoms of a failing DEF injector early can prevent the “death spiral” of emissions repairs, where a small injector issue leads to a clogged DPF and eventually a ruined SCR catalyst. If you notice any of these five signs, it’s time to inspect your dosing valve.

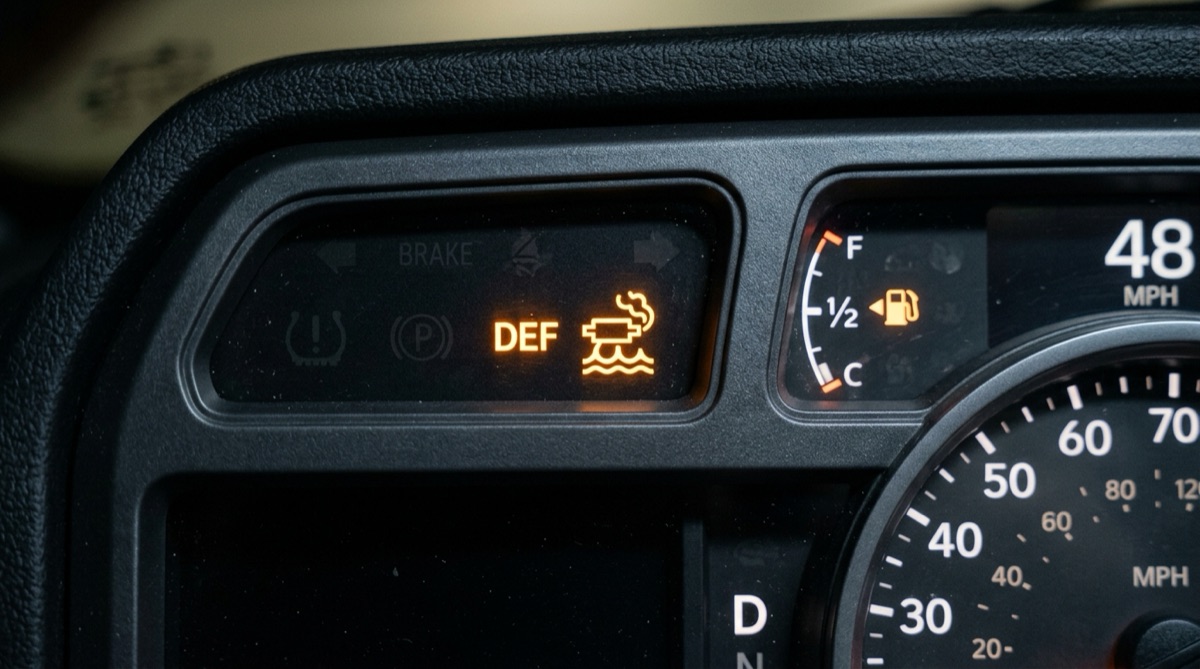

Sign 1: The “Service DEF” or “Exhaust Fluid System” Message
This is the most obvious sign, but many drivers ignore it, thinking it just means the tank is low. Modern trucks have sophisticated sensors that monitor NOx levels before and after the catalyst. If the injector is failing to spray, the downstream NOx sensor will detect high emissions and trigger a specific warning.
Unlike a low-fluid warning, an “Emissions System Failure” message often comes with a countdown. “500 Miles to 5 MPH Derate” is a common sight. This is the ECM’s way of forcing you to fix the problem before the vehicle becomes a high-pollution machine.
Sign 2: White Smoke or Ammonia Smell from the Exhaust
While diesel engines used to be known for black smoke, a failing SCR system often produces white smoke or a sharp, stinging smell of ammonia.
- White Smoke: This is often actually “urea steam.” If the injector is “leaking” or “dripping” rather than misting, the large droplets don’t react; they simply boil off, creating a white vapor.
- Ammonia Smell: If the injector is “over-dosing” (stuck open), too much urea is entering the system. This leads to “Ammonia Slip,” where unreacted ammonia exits the tailpipe. If your eyes sting when standing behind your idling truck, your injector is likely failing.
Sign 3: Excessive DEF Consumption
Every truck has a “normal” DEF-to-Diesel ratio, usually between 2% and 4%. If you suddenly find yourself filling the DEF tank twice as often as usual, your injector might be stuck partially open or the ECM is over-compensating for a poor spray pattern. Conversely, if you notice you *aren’t* using any DEF, the injector is likely blocked solid by crystals.
Sign 4: Visual Crystallization “Barnacles”
If you can safely look under your truck, inspect the area where the injector meets the exhaust pipe. A failing injector or a blown gasket will often show “urea barnacles”—large, white, cauliflower-like growths of crystallized urea. This indicates that DEF is escaping the injector housing or that the injector tip is so clogged that the fluid is backing up and leaking out of the seals.
Sign 5: Poor Engine Performance and Frequent Regens
While the DEF system is “downstream” of the engine, its failure can affect how the engine runs. If the injector is clogged, the SCR catalyst can’t do its job. This puts a heavier load on the Diesel Particulate Filter (DPF). You might notice:
- Frequent “Parked Regens”: The truck asks to regenerate the filter much more often than usual.
- Loss of Power: As the exhaust path becomes restricted by urea deposits, backpressure increases, causing the turbo to work harder and the engine to lose “pep.”
Common Diagnostic P-Codes for Injector Failure
If you hook up a scan tool, look for these specific “Reductant” codes:
- P2047: Reductant Injection Valve Circuit / Open (Electrical failure).
- P204F: Reductant System Performance (General failure).
- P208E: Reductant Injection Valve Stuck Closed (Usually a physical clog).
- P218F: Reductant System Efficiency (Injecting, but not enough to clean the air).
The 3-Step Diagnostic Check
- The Click Test: With the ignition on but the engine off, use a scan tool to command a “Doser Test.” You should hear a clear, rhythmic “click-click-click” from the injector. No sound means an electrical failure.
- The Visual Tip Check: Remove the injector (see our DIY guide) and look for crystals. If the tip is covered in a hard “rock,” it’s failing.
- The Quantity Test: Use a graduated cylinder to catch the spray during a commanded test. For most trucks, it should spray about 40ml to 60ml in a 60-second test. If it’s less, it’s clogged.
FAQ: Failing DEF Injectors
Q: Can a bad NOx sensor look like a bad injector?
A: Yes. A “lazy” NOx sensor might report high emissions even if the injector is working perfectly. Always perform a “Quantity Test” on the injector before replacing it to be sure.
Q: Will a failing injector ruin my turbo?
A: Not directly, but a completely blocked exhaust (due to urea deposits) creates excessive backpressure which can strain the turbo seals and bearings over time.
Q: Is it safe to drive with a failing DEF injector?
A: Only for short distances. The truck will eventually enter “Limp Mode,” and the excessive soot buildup in the DPF will lead to a much more expensive repair if you continue to drive.
Q: Can I just “delete” the system instead of fixing the injector?
A: While some choose this path, it is illegal for road-going vehicles in most countries and will lead to heavy fines and failed inspections. Fixing the injector is much cheaper than the legal and environmental costs of a delete.
